Panasonic Electronic Components
CAP ALUM POLY HYB 270UF 35V SMD

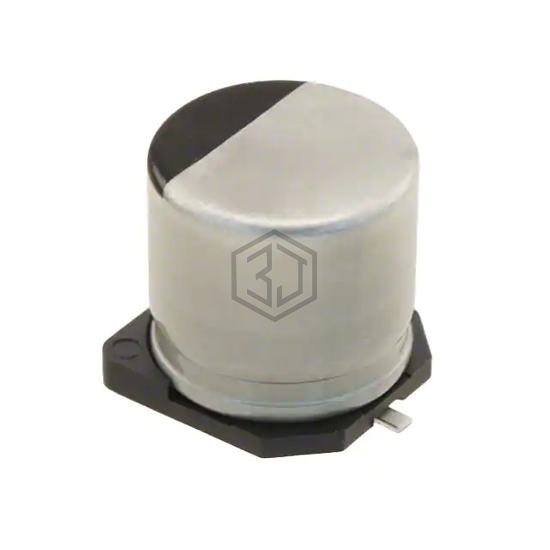

EEH-ZA1V271P is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY HYB 270UF 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 3,921
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 20mOhm |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 375 mA @ 100 Hz |
| Ripple Current @ High Frequency | 2.5 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| HHXB350ARA271MJA0G | United Chemi-Con | CAP ALUM POLY HYB 270UF 35V SMD | 100% | View |
| MAL218297006E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY HYB 270UF 35V SMD | 90% | View |
| HHXE350ARA271MJA0G | United Chemi-Con | CAP ALUM HYBRD 270UF 20% 35V SMD | 90% | View |
| HZA277M035G24T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM POLY HYB 270UF 35V SMD | 90% | View |
| HHXD250ARA271MJA0G | United Chemi-Con | CAP ALUM HYBRD 270UF 20% 25V SMD | 86% | View |
| 25PLV270M10X10.5 | Rubycon | CAP ALUM POLY HYB 270UF 25V SMD | 56% | View |
Submit your RFQ for EEH-ZA1V271P and get a quote within 24 hours.
