Panasonic Electronic Components

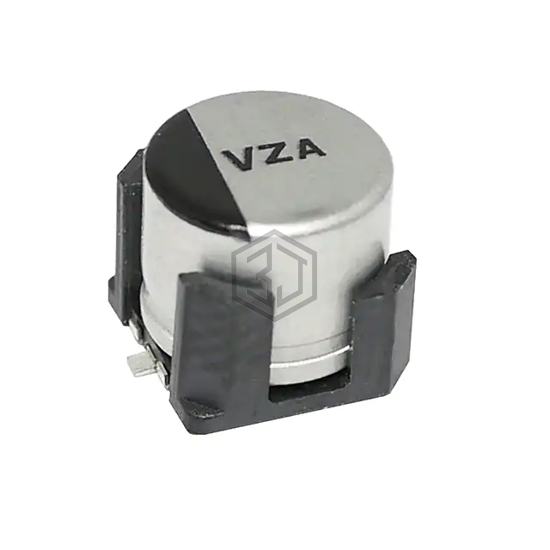

CAP ALUM POLY HYB 100UF 35V SMD
EEH-ZA1V101V is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY HYB 100UF 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 9,761
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 27mOhm |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 345 mA @ 100 Hz |
| Ripple Current @ High Frequency | 2.3 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.425" (10.80mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| BW107M035HFKTA | Aillen | CAP ALUMHYB 100UF 20% 35V SMD | 88% | View |
| BW107M050HGKTA | Aillen | CAP ALUMHYB 100UF 20% 50V SMD | 74% | View |
| A780MS107M1JLAV030 | KEMET | CAP ALUM POLY HYB 100UF 63V SMD | 71% | View |
| RSHVK101M4EFK5002E | Elna America | CAP ALUM POLY HYB 100UF 63V SMD | 66% | View |
| 25PHV100M6.3X8 | Rubycon | CAP ALUM POLY HYB 100UF 25V SMD | 62% | View |
| 63PJV100M10X12.5 | Rubycon | CAP ALUM POLY HYB 100UF 63V SMD | 56% | View |
Submit your RFQ for EEH-ZA1V101V and get a quote within 24 hours.
