Panasonic Electronic Components
CAP ALUM POLY HYB 82UF 63V SMD

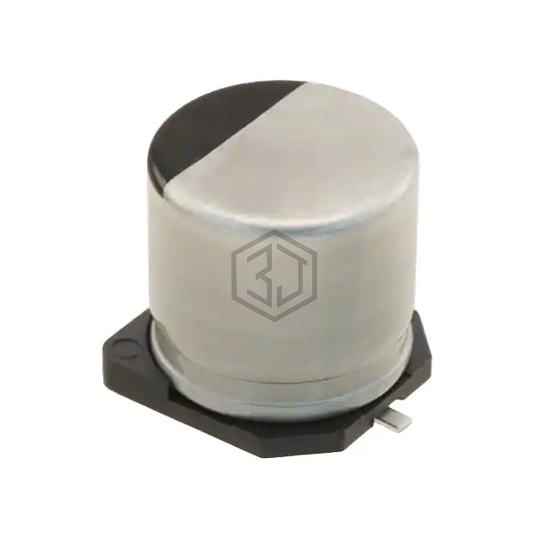

EEH-ZA1J820P is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY HYB 82UF 63V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can - SMD.
In Stock: 2,970
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 30mOhm |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 270 mA @ 100 Hz |
| Ripple Current @ High Frequency | 1.8 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEH-ZA1J820V | Panasonic Electronic Components | CAP ALUM POLY HYB 82UF 63V SMD | 100% | View |
| EEH-ZC1J820P | Panasonic Electronic Components | CAP ALUM HYBRID 82UF 20% 63V SMD | 88% | View |
| EEH-ZC1J820V | Panasonic Electronic Components | CAP ALUM HYBRID 82UF 20% 63V SMD | 88% | View |
| EEH-ZT1J820V | Panasonic Electronic Components | CAP ALUM POLY HYB 82UF 63V SMD | 79% | View |
| EEH-ZK1E820P | Panasonic Electronic Components | CAP ALUM POLY HYB 82UF 25V SMD | 63% | View |
| HHXE250ARA101MF80G | United Chemi-Con | CAP ALUM HYBRD 100UF 20% 25V SMD | 62% | View |
Submit your RFQ for EEH-ZA1J820P and get a quote within 24 hours.
