Panasonic Electronic Components
CAP ALUM POLY HYB 56UF 63V SMD

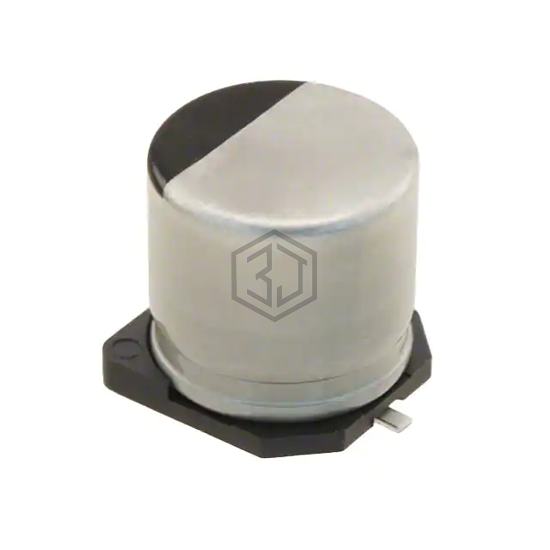

EEH-ZA1J560P is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY HYB 56UF 63V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can - SMD.
In Stock: 5,725
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 30mOhm |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 270 mA @ 100 Hz |
| Ripple Current @ High Frequency | 1.8 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 63PKV56M8X10.5 | Rubycon | CAP ALUM HYBRD SMD 63V 56UF 20% | 97% | View |
| BW566M063HGKTA | Aillen | CAP ALUM HYBRID 56UF 20% 63V SMD | 92% | View |
| HHXE630ARA560MJA0G | Chemi-Con | CAP ALUM HYBRID 56UF 20% 63V SMD | 90% | View |
| 875575857006 | Würth Elektronik | CAP ALUM HYBRID 56UF 20% 63V SMD | 90% | View |
| EEH-ZA1E560V | Panasonic Electronic Components | CAP ALUM POLY 56UF 20% 25V SMD | 63% | View |
| EEH-ZK1V560P | Panasonic Electronic Components | CAP ALUM POLY 56UF 20% 35V SMD | 63% | View |
