Panasonic Electronic Components

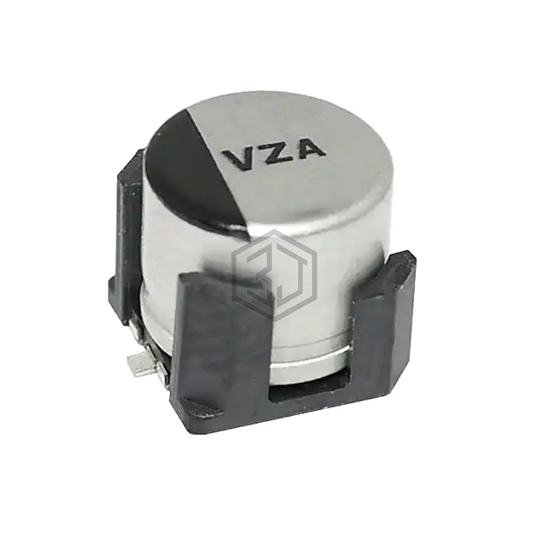

CAP ALUM POLY HYB 68UF 25V SMD
EEH-ZA1E680XV is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY HYB 68UF 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 1,822
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 30mOhm |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 300 mA @ 100 Hz |
| Ripple Current @ High Frequency | 2 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.327" (8.30mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEH-ZA1H680V | Panasonic Electronic Components | CAP ALUM POLY 68UF 20% 50V SMD | 74% | View |
| AHA0608680M025R | KYOCERA AVX | CAP ALUM POLY HYB 68UF 25V SMD | 73% | View |
| EEH-ZT1H680P | Panasonic Electronic Components | CAP ALUM POLY HYB 68UF 50V SMD | 65% | View |
| EEH-ZC1J680V | Panasonic Electronic Components | CAP ALUM POLY 68UF 20% 63V SMD | 62% | View |
| EEH-ZC1H680V | Panasonic Electronic Components | CAP ALUM POLY 68UF 20% 50V SMD | 56% | View |
| 50PEV68M8X10.5 | Rubycon | CAP ALUM POLY HYB 68UF 50V SMD | 50% | View |
Submit your RFQ for EEH-ZA1E680XV and get a quote within 24 hours.
