Panasonic Electronic Components
CAP ALUM POLY 68UF 20% 63V T/H

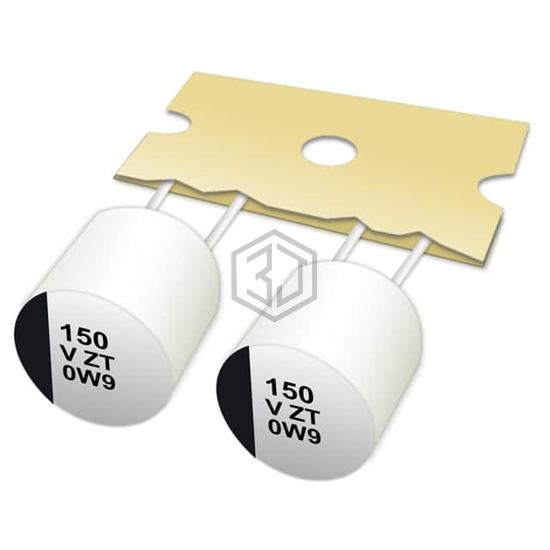

EEH-AZT1J680B is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY 68UF 20% 63V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 4,512
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 25mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 420 mA @ 100 Hz |
| Ripple Current @ High Frequency | 2.8 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEH-AZT1H680B | Panasonic Electronic Components | CAP ALUM POLY 68UF 20% 50V T/H | 91% | View |
| A7C5KS686M1JBAS040 | KEMET | CAP ALU HYBRID RADL 68UF 63V | 91% | View |
| 63PZH68M10X11 | Rubycon | CAP ALUM POLY HYB 68UF 63V T/H | 74% | View |
| EEH-AZC1J680B | Panasonic Electronic Components | CAP ALUM POLY 68UF 20% 63V T/H | 67% | View |
| 50PZH68M8X9 | Rubycon | CAP ALUM POLY HYB 68UF 50V T/H | 62% | View |
| EEH-AZC1H680B | Panasonic Electronic Components | CAP ALUM POLY 68UF 20% 50V T/H | 54% | View |
Submit your RFQ for EEH-AZT1J680B and get a quote within 24 hours.
