Panasonic Electronic Components
CAP ALUM POLY 560UF 20% 25V T/H

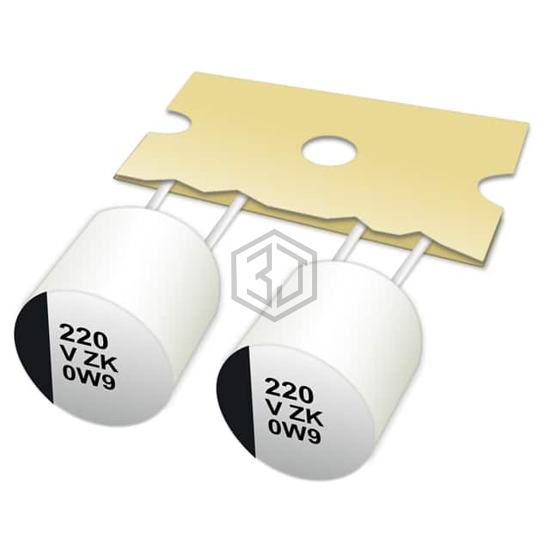

EEH-AZKE561UB is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY 560UF 20% 25V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 5,638
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 20mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 420 mA @ 100 Hz |
| Ripple Current @ High Frequency | 2.8 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 25PZK560M10X9 | Rubycon | CAP ALUM HYBRID 560UF 20% 25V TH | 100% | View |
| EEH-AZS1E561B | Panasonic Electronic Components | CAP ALUM POLY 560UF 20% 25V T/H | 83% | View |
| 25PZK680M10X11 | Rubycon | CAP ALUM HYBRID TH 25V 680UF 20% | 79% | View |
| EEH-AZSE681UB | Panasonic Electronic Components | CAP ALUM POLY HYB 680UF 25V T/H | 75% | View |
| EEH-AZSV681UB | Panasonic Electronic Components | CAP ALUM POLY HYB 680UF 35V T/H | 58% | View |
| 35PZH680M10X20 | Rubycon | CAP ALUM POLY HYB 680UF 35V T/H | 56% | View |
Submit your RFQ for EEH-AZKE561UB and get a quote within 24 hours.
