Panasonic Electronic Components

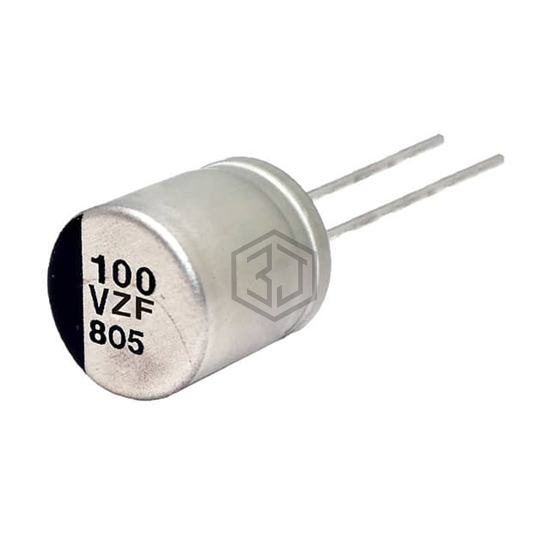

CAP ALUM POLY 100UF 20% 35V T/H
EEH-AZF1V101 is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY 100UF 20% 35V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 167
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Hybrid |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 30mOhm |
| Lifetime @ Temp. | 1000 Hrs @ 150°C |
| Operating Temperature | -55°C ~ 150°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 115.5 mA @ 100 Hz |
| Ripple Current @ High Frequency | 770 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
Submit your RFQ for EEH-AZF1V101 and get a quote within 24 hours.
