Panasonic Electronic Components

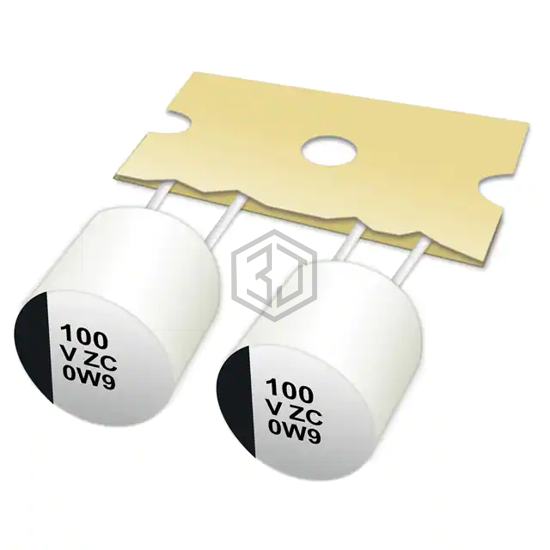

CAP ALUM POLY 56UF 20% 63V T/H
EEH-AZC1J560B is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY 56UF 20% 63V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 1,153
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 30mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 210 mA @ 100 Hz |
| Ripple Current @ High Frequency | 1.4 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 63PZS56M10X9 | Rubycon | CAP ALUM POLY HYB 56UF 63V T/H | 90% | View |
| EEH-AZF1J560B | Panasonic Electronic Components | CAP ALUM POLY 56UF 20% 63V T/H | 76% | View |
| 63PZH56M10X9 | Rubycon | CAP ALUM POLY HYB 56UF 63V T/H | 74% | View |
| 63PZF56M10X9 | Rubycon | CAP ALUM POLY HYB 56UF 63V T/H | 74% | View |
| EEH-AZE1J560B | Panasonic Electronic Components | CAP ALUM POLY 56UF 20% 63V T/H | 73% | View |
| EEH-AZT1J560B | Panasonic Electronic Components | CAP ALUM POLY 47UF 20% 63V T/H | 67% | View |
