Panasonic Electronic Components

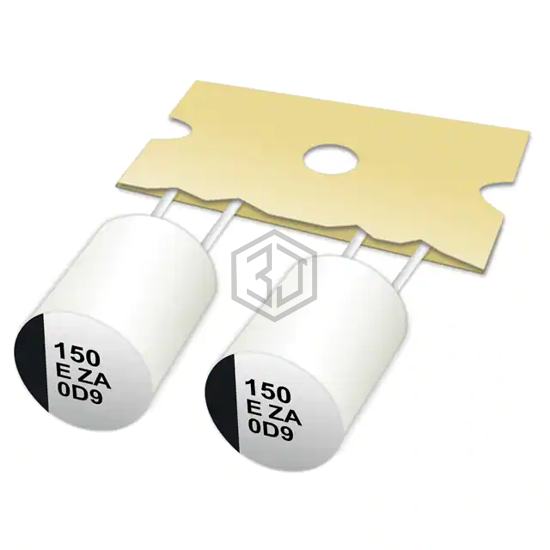

CAP ALUM POLY 22UF 20% 80V T/H
EEH-AZA1K220B is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY 22UF 20% 80V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 80 V, package / case Radial, Can.
In Stock: 9,503
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 45mOhm |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 155 mA @ 100 Hz |
| Ripple Current @ High Frequency | 1.55 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 870575874002 | Würth Elektronik | CAP ALUM HYBRID 22UF 20% 63V TH | 92% | View |
| 870585874002 | Würth Elektronik | CAP ALUM HYBRID 22UF 20% 63V TH | 82% | View |
| EEH-AZC1K220B | Panasonic Electronic Components | CAP ALUM POLY 22UF 20% 80V T/H | 81% | View |
| RHA1011180M080K | KYOCERA AVX | CAP ALUM HYBRID 18UF 20% 80V TH | 76% | View |
| RHA1011180M080B | KYOCERA AVX | CAP ALUM HYBRID 18UF 20% 80V TH | 76% | View |
| 80PZF22M8X9 | Rubycon | CAP ALUM POLY HYB 22UF 80V T/H | 67% | View |
