Panasonic Electronic Components

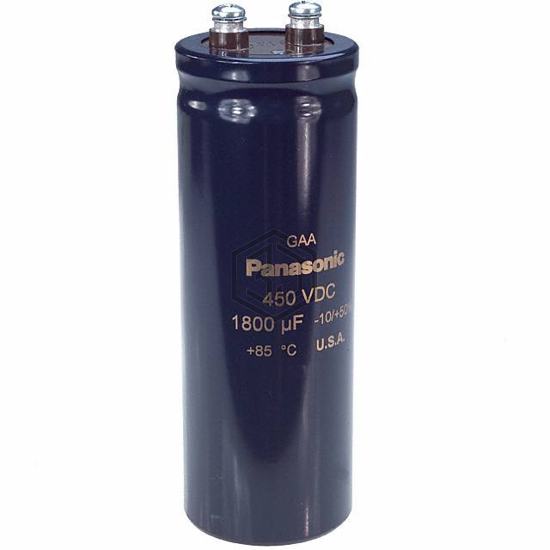

CAP ALUM 1800UF 20% 450V SCREW
EEG-A2W182FPE is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 1800UF 20% 450V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 450 V, package / case Radial, Can - Screw Terminals.
In Stock: 3,197
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 122mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 7.47 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.874" (22.20mm) |
| Size / Dimension | 2.000" Dia (50.80mm) |
| Height - Seated (Max) | 5.625" (142.88mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
EEG-A2W182FPE is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL250157182E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1800UF 20% 450V SCREW | 100% | View |
| B43742A6188M000 | EPCOS - TDK Electronics | CAP ALUM 1800UF 20% 500V SCREW | 96% | View |
| LNU2H182MTEG | Nichicon | CAP ALUM 1800UF 20% 500V SCREW | 95% | View |
| E37L501CPN182MD92U | United Chemi-Con | CAP ALUM 1800UF 20% 500V SCREW | 94% | View |
| LNY2G182MSEFBB | Nichicon | CAP ALUM 1800UF 20% 400V SCREW | 90% | View |
| LNC2W182MTEF | Nichicon | CAP ALUM 1800UF 20% 450V SCREW | 86% | View |
Submit your RFQ for EEG-A2W182FPE and get a quote within 24 hours.
