Panasonic Electronic Components
CAP ALUM 1000UF 20% 450V SCREW

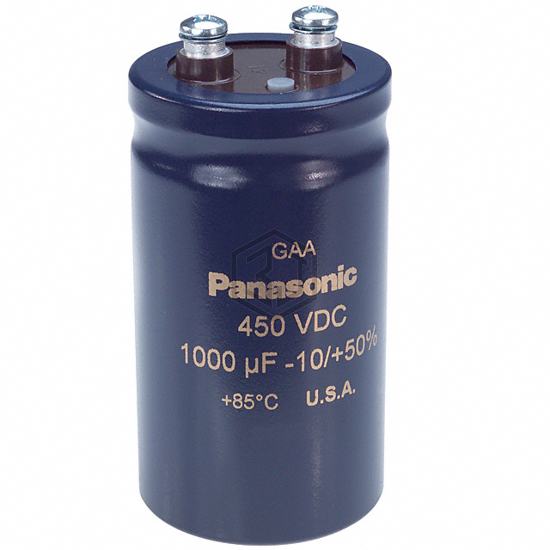

EEG-A2W102FHE is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 1000UF 20% 450V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 450 V, package / case Radial, Can - Screw Terminals.
In Stock: 4,630
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 221mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5.85 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.874" (22.20mm) |
| Size / Dimension | 2.000" Dia (50.80mm) |
| Height - Seated (Max) | 3.625" (92.08mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
EEG-A2W102FHE is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNY2G102MSEF | Nichicon | CAP ALUM 1000UF 20% 400V SCREW | 92% | View |
| 36D102F400CE2A | Vishay Sprague | CAP ALUM 1000UF 400V SCREW | 92% | View |
| LNC2V102MTEF | Nichicon | CAP ALUM 1000UF 20% 350V SCREW | 78% | View |
| E36D501HPN102MCA5U | United Chemi-Con | CAP ALUM 1000UF 20% 500V SCREW | 75% | View |
| E36D351HPN102MAA5U | United Chemi-Con | CAP ALUM 1000UF 20% 350V SCREW | 72% | View |
| CG102U100R4C | Cornell Dubilier Electronics (CDE) | CAP ALUM 1000UF 100V SCREW | 61% | View |
Submit your RFQ for EEG-A2W102FHE and get a quote within 24 hours.
