Panasonic Electronic Components

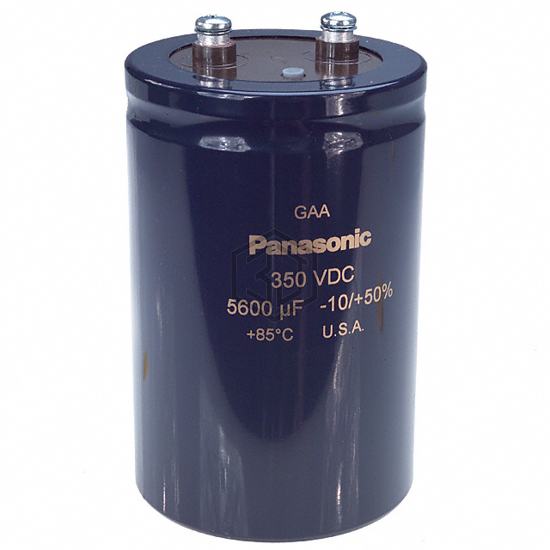

CAP ALUM 5600UF 20% 350V SCREW
EEG-A2V562HLE is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 5600UF 20% 350V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 350 V, package / case Radial, Can - Screw Terminals.
In Stock: 1,667
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 5600 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | 39mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 10.06 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 1.252" (31.80mm) |
| Size / Dimension | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 4.625" (117.48mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
EEG-A2V562HLE is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 3186GG562M400MPC1 | Cornell Dubilier Electronics (CDE) | CAP ALUM 5600UF 20% 400V SCREW | 91% | View |
| ALS71H562LM350 | KEMET | CAP ALUM 5600UF 20% 350V SCREW | 88% | View |
| B43464A5568M000 | EPCOS - TDK Electronics | CAP ALUM 5600UF 20% 450V SCREW | 74% | View |
| LNC2G562MTEH | Nichicon | CAP ALUM 5600UF 20% 400V SCREW | 72% | View |
| ALS71G562NP500 | KEMET | CAP ALUM 5600UF 20% 500V SCREW | 69% | View |
| LNC2W562MSEJBN | Nichicon | CAP ALUM 5600UF 20% 450V SCREW | 61% | View |
Submit your RFQ for EEG-A2V562HLE and get a quote within 24 hours.
