Panasonic Electronic Components

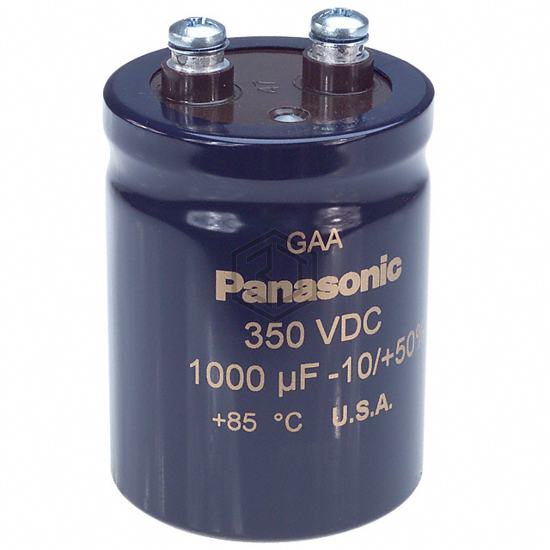

CAP ALUM 1000UF 20% 350V SCREW
EEG-A2V102FEE is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 1000UF 20% 350V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 350 V, package / case Radial, Can - Screw Terminals.
In Stock: 2,428
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | 221mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.11 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.874" (22.20mm) |
| Size / Dimension | 2.000" Dia (50.80mm) |
| Height - Seated (Max) | 2.625" (66.68mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
EEG-A2V102FEE is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL210455102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 350V SCREW | 96% | View |
| MAL210265102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 350V SCREW | 90% | View |
| B43454A5108M000 | EPCOS - TDK Electronics | CAP ALUM 1000UF 20% 450V SCREW | 87% | View |
| MAL210417102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 450V SCREW | 83% | View |
| MAL210257102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 450V SCREW | 79% | View |
| MAL210422102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 200V SCREW | 74% | View |
Submit your RFQ for EEG-A2V102FEE and get a quote within 24 hours.
