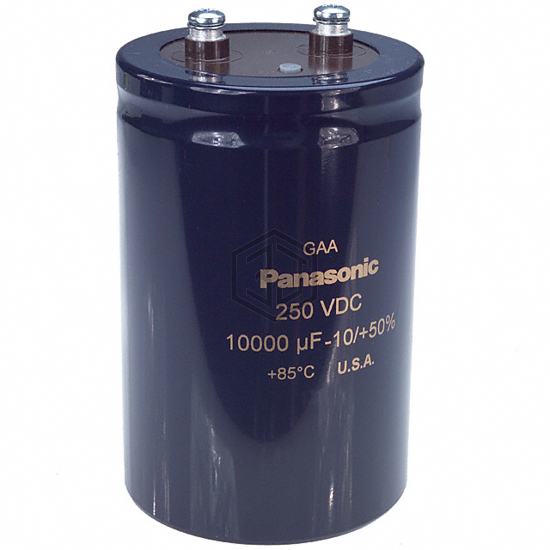

Panasonic Electronic Components
CAP ALUM 10000UF 20% 250V SCREW
EEG-A2E103HLE is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 10000UF 20% 250V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 250 V, package / case Radial, Can - Screw Terminals.
In Stock: 3,042
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | 22mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 17.75 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 1.252" (31.80mm) |
| Size / Dimension | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 4.625" (117.48mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
EEG-A2E103HLE is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL210472103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 200V SCREW | 88% | View |
| ALS71A103QC200 | KEMET | CAP ALUM 10000UF 20% 200V SCREW | 84% | View |
| LNY2G103MSEH | Nichicon | CAP ALUM 10000UF 20% 400V SCREW | 73% | View |
| LNY2W103MSEJBB | Nichicon | CAP ALUM 10000UF 20% 450V SCREW | 67% | View |
| LNY2W103MSEJBN | Nichicon | CAP ALUM 10000UF 20% 450V SCREW | 67% | View |
| B43464A5109M000 | EPCOS - TDK Electronics | CAP ALUM 10000UF 20% 450V SCREW | 65% | View |
Submit your RFQ for EEG-A2E103HLE and get a quote within 24 hours.
