Panasonic Electronic Components

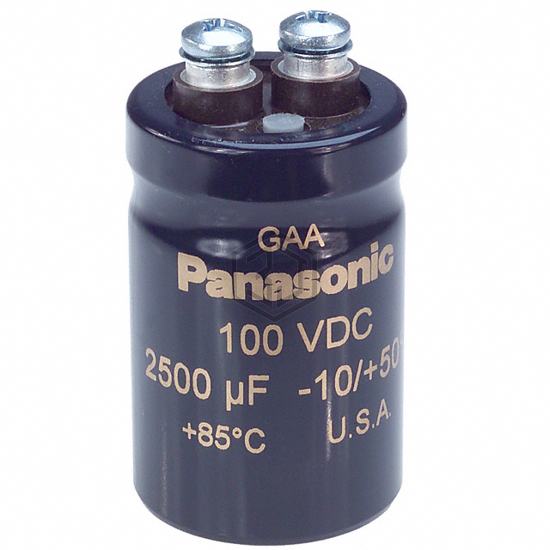

CAP ALUM 2500UF 20% 100V SCREW
EEG-A2A252CCE is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 2500UF 20% 100V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can - Screw Terminals.
In Stock: 4,298
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 117mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.12 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.375" Dia (34.93mm) |
| Height - Seated (Max) | 2.125" (53.98mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
EEG-A2A252CCE is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 500C252T100AA2B | Cornell Dubilier Electronics (CDE) | CAP ALUM 2500UF 100V SCREW | 100% | View |
| 36D252G075AC2A | Vishay Sprague | CAP ALUM 2500UF 75V SCREW | 82% | View |
| CGS252U150V4C | Cornell Dubilier Electronics (CDE) | CGS252U150V4C | 74% | View |
| CGS252T300V4C | Cornell Dubilier Electronics (CDE) | CAP ALUM 2500UF 300V SCREW | 56% | View |
| E36D201LPN252TDA5U | United Chemi-Con | CAP ALUM 2500UF 200V SCREW | 56% | View |
| DCM252U050AC2B | Cornell Dubilier Electronics (CDE) | CAP ALUM 2500UF 50V SCREW | 56% | View |
Submit your RFQ for EEG-A2A252CCE and get a quote within 24 hours.
