Panasonic Electronic Components

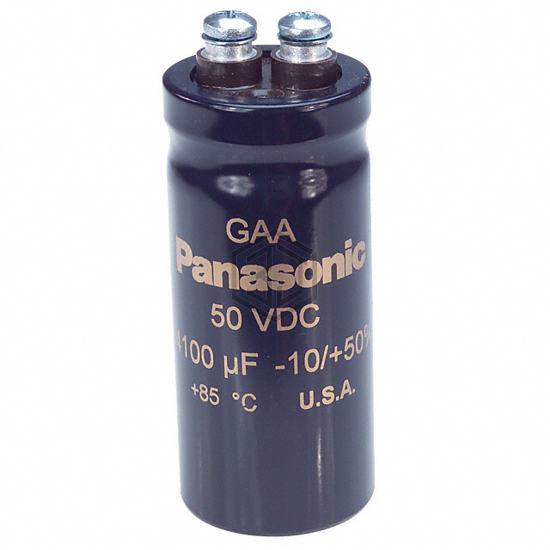

CAP ALUM 4100UF 20% 50V SCREW
EEG-A1H412CGE is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 4100UF 20% 50V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can - Screw Terminals.
In Stock: 3,376
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 4100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 107mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5.4 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.375" Dia (34.93mm) |
| Height - Seated (Max) | 3.125" (79.38mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
EEG-A1H412CGE is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CGH412T500X5L | Cornell Dubilier Electronics (CDE) | CAP ALUM 4100UF 500V SCREW | 60% | View |
| CGS412T250V4L | Cornell Dubilier Electronics (CDE) | CAP ALUM 4100UF 250V SCREW | 57% | View |
| CGH412T350W4L | Cornell Dubilier Electronics (CDE) | CAP ALUM 4100UF 350V SCREW | 56% | View |
| DCM412T300DF1B | Cornell Dubilier Electronics (CDE) | CAP ALUM 4100UF 300V SCREW | 56% | View |
| 36DX412F250CD2A | Vishay Sprague | CAP ALUM 4100UF 250V SCREW | 56% | View |
| E36D301HPC412TEE9U | United Chemi-Con | CAP ALUM 4100UF 300V SCREW | 56% | View |
Submit your RFQ for EEG-A1H412CGE and get a quote within 24 hours.
