Panasonic Electronic Components

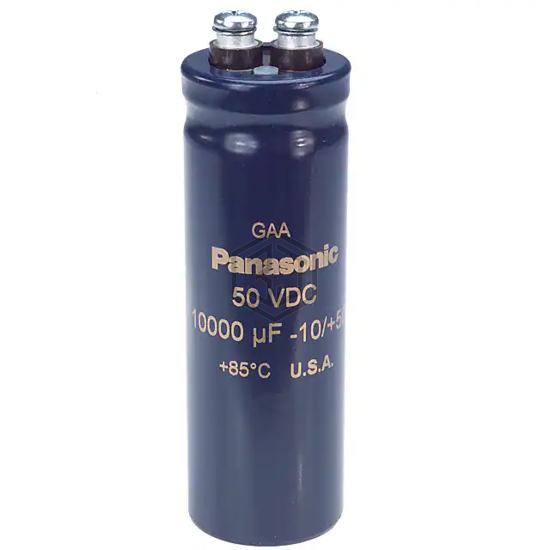

CAP ALUM 10000UF 20% 50V SCREW
EEG-A1H103CKE is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 10000UF 20% 50V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can - Screw Terminals.
In Stock: 9,247
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 44mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 8.79 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.375" Dia (34.93mm) |
| Height - Seated (Max) | 4.125" (104.78mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
EEG-A1H103CKE is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 36DE103G050AB2A | Vishay Sprague | CAP ALUM 10000UF 50V SCREW | 100% | View |
| ALS80A103DB063 | KEMET | CAP ALUM 10000UF 20% 63V SCREW | 88% | View |
| MAL205018103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 63V SOLDER LUG | 79% | View |
| 36DE103G075BB2B | Vishay Sprague | CAP ALUM 10000UF 75V SCREW | 74% | View |
| MAL210159103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 100V SCREW | 66% | View |
| CGS103U150V5L | Cornell Dubilier Electronics (CDE) | CAP ALUM 10000UF 150V SCREW | 59% | View |
Submit your RFQ for EEG-A1H103CKE and get a quote within 24 hours.
