Panasonic Electronic Components

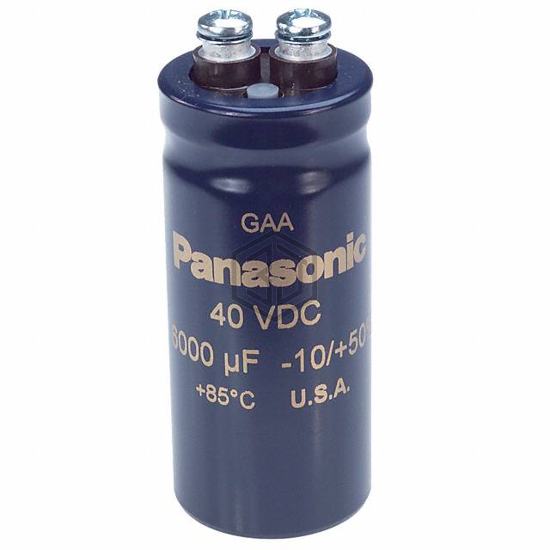

CAP ALUM 6000UF 20% 40V SCREW
EEG-A1G602CGE is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 6000UF 20% 40V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 40 V, package / case Radial, Can - Screw Terminals.
In Stock: 4,354
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 6000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 40 V |
| ESR (Equivalent Series Resistance) | 73mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 6.06 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.375" Dia (34.93mm) |
| Height - Seated (Max) | 3.125" (79.38mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
EEG-A1G602CGE is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL211016602E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6000UF 400V SCREW | 56% | View |
| MAL211085602E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6000UF 350V SCREW | 56% | View |
| MAL211025602E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6000UF 350V SCREW | 56% | View |
| MAL211076602E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6000UF 400V SCREW | 56% | View |
| MAL211033602E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6000UF 250V SCREW | 56% | View |
| MAL211067602E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6000UF 450V SCREW | 56% | View |
Submit your RFQ for EEG-A1G602CGE and get a quote within 24 hours.
