Panasonic Electronic Components

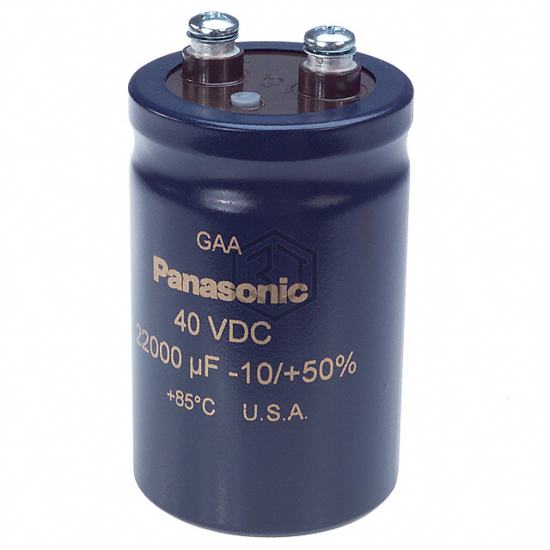

CAP ALUM 22000UF 20% 40V SCREW
EEG-A1G223FGE is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 22000UF 20% 40V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 40 V, package / case Radial, Can - Screw Terminals.
In Stock: 2,851
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 40 V |
| ESR (Equivalent Series Resistance) | 20mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 13.06 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.874" (22.20mm) |
| Size / Dimension | 2.000" Dia (50.80mm) |
| Height - Seated (Max) | 3.125" (79.38mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
EEG-A1G223FGE is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E32D400HLS223MA79M | United Chemi-Con | CAP ALUM 22000UF 20% 40V SCREW | 100% | View |
| LNT1H223MSEN | Nichicon | CAP ALUM 22000UF 20% 50V SCREW | 67% | View |
| LNR1J223MSEN | Nichicon | CAP ALUM 22000UF 20% 63V SCREW | 61% | View |
| E36D350HPN223MC48U | United Chemi-Con | CAP ALUM 22000UF 20% 35V SCREW | 59% | View |
| 36DY223F100CF2A | Vishay Sprague | CAP ALUM 22000UF 100V SCREW | 56% | View |
| E36D101LPN223TDA5U | United Chemi-Con | CAP ALUM 22000UF 100V SCREW | 56% | View |
Submit your RFQ for EEG-A1G223FGE and get a quote within 24 hours.
