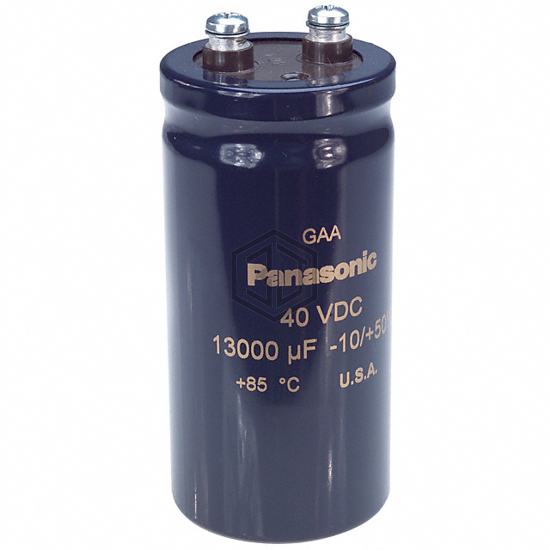

Panasonic Electronic Components
CAP ALUM 13000UF 20% 40V SCREW
EEG-A1G133FKE is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 13000UF 20% 40V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 40 V, package / case Radial, Can - Screw Terminals.
In Stock: 3,815
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 13000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 40 V |
| ESR (Equivalent Series Resistance) | 34mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 11.76 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.874" (22.20mm) |
| Size / Dimension | 2.000" Dia (50.80mm) |
| Height - Seated (Max) | 4.125" (104.78mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
EEG-A1G133FKE is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E32D600LPN133TDA5U | United Chemi-Con | CAP ALUM 13000UF 60V SCREW | 74% | View |
| HVMLS133M010EK1A | Cornell Dubilier Electronics (CDE) | CAP ALUM 13000UF 20% 10V FLATPCK | 70% | View |
| ALS71A133KE100 | KEMET | CAP ALUM 13000UF 20% 100V SCREW | 65% | View |
| ALS81H133NP250 | KEMET | CAP ALUM 13000UF 20% 250V SCREW | 59% | View |
| ALS80G133NP250 | KEMET | CAP ALUM 13000UF 20% 250V SCREW | 59% | View |
| ALS70H133NF250 | KEMET | CAP ALUM 13000UF 20% 250V SCREW | 58% | View |
Submit your RFQ for EEG-A1G133FKE and get a quote within 24 hours.
