Panasonic Electronic Components
CAP ALUM 68000UF 20% 25V SCREW

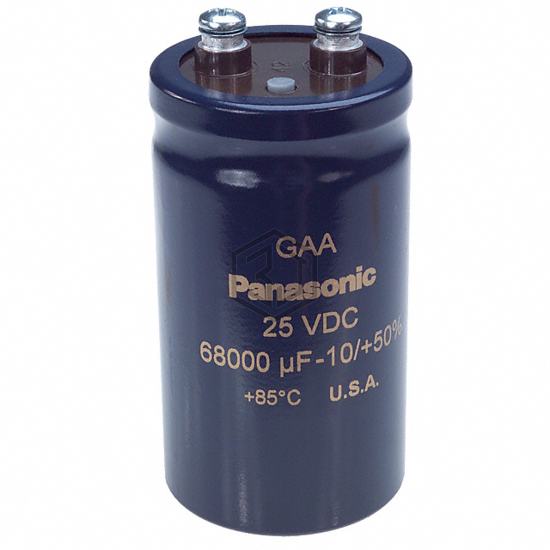

EEG-A1E683FHE is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 68000UF 20% 25V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - Screw Terminals.
In Stock: 1,996
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 68000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 9mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 17.14 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.874" (22.20mm) |
| Size / Dimension | 2.000" Dia (50.80mm) |
| Height - Seated (Max) | 3.625" (92.08mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
EEG-A1E683FHE is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E36D250HPN703UEA5M | United Chemi-Con | CAP ALUM 70000UF 25V SCREW | 98% | View |
| DCM703U025DC2B | Cornell Dubilier Electronics (CDE) | CAP ALUM 70000UF 25V SCREW | 98% | View |
| 36DE703G020ED2A | Vishay Sprague | CAP ALUM 70000UF 20V SCREW | 83% | View |
| 35LSQ68000M51X83 | Rubycon | CAP ALUM 68000UF 20% 35V SCREW | 71% | View |
| ALS81P683NW100 | KEMET | CAP ALUM 68000UF 20% 100V SCREW | 57% | View |
| ALS81G683NW100 | KEMET | CAP ALUM 68000UF 20% 100V SCREW | 57% | View |
