Panasonic Electronic Components
CAP ALUM 12000UF 20% 25V SCREW

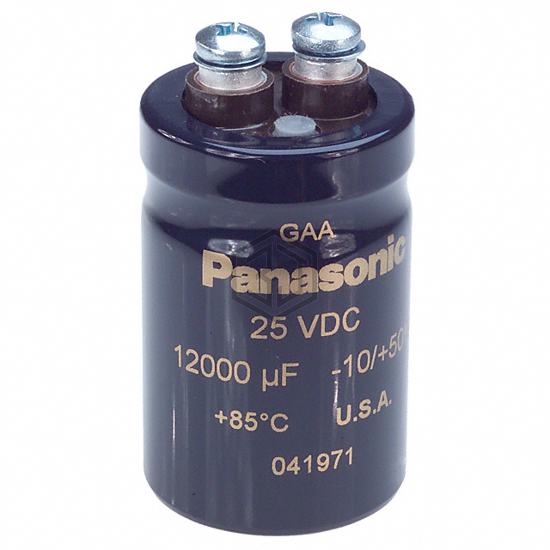

EEG-A1E123CCE is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 12000UF 20% 25V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - Screw Terminals.
In Stock: 6,394
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 12000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 42mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5.13 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.375" Dia (34.93mm) |
| Height - Seated (Max) | 2.125" (53.98mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
EEG-A1E123CCE is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MLP123M025EA1A | Cornell Dubilier Electronics (CDE) | CAP ALUM 12000UF 20% 25V FLATPCK | 98% | View |
| MLP123M025EA1D | Cornell Dubilier Electronics (CDE) | CAP ALUM 12000UF 20% 25V FLATPCK | 98% | View |
| E36D630LPN123MC48U | Chemi-Con | CAP ALUM 12MF 20% 63V SCREW CHAS | 71% | View |
| DCMC123U050AH2B | Cornell Dubilier Electronics (CDE) | CAP ALUM 12000UF 50V SCREW | 63% | View |
| 36D123G050BE2A | Vishay Sprague | CAP ALUM 12000UF 50V SCREW | 56% | View |
| E36D151LPN123TED0U | United Chemi-Con | CAP ALUM 12000UF 150V SCREW | 56% | View |
Submit your RFQ for EEG-A1E123CCE and get a quote within 24 hours.
