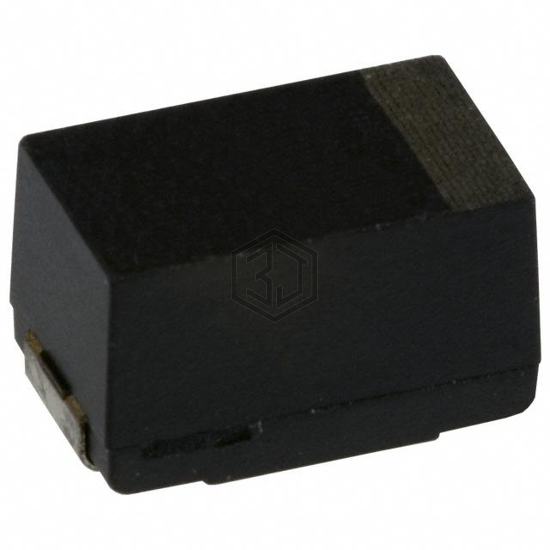

Panasonic Electronic Components
CAP ALUM POLY 150UF 20% 6.3V SMD
EEF-UE0J151XE is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY 150UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 6.3 V, package / case 2917 (7343 Metric).
In Stock: 6,539
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Polymer |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 10mOhm |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 3.5 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Height - Seated (Max) | 0.165" (4.20mm) |
| Surface Mount Land Size | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | 2917 (7343 Metric) |
EEF-UE0J151XE is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RUB0J151MLG | Nichicon | CAP ALUM POLY 150UF 20% 6.3V SMD | 100% | View |
| 157XMPL6R3MG28H | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 150UF 20% 6.3V SMD | 95% | View |
| ESRD121M06XR | Cornell Dubilier Electronics (CDE) | CAP ALUM POLY 120UF 20% 6.3V SMD | 87% | View |
| EEF-UD0G151LE | Panasonic Electronic Components | CAP ALUM POLY 150UF 20% 4V SMD | 80% | View |
| 157XMPL004MG197 | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 150UF 20% 4V SMD | 76% | View |
| EEF-CS0G121R | Panasonic Electronic Components | CAP ALUM POLY 120UF 20% 4V SMD | 58% | View |
Submit your RFQ for EEF-UE0J151XE and get a quote within 24 hours.
