Panasonic Electronic Components

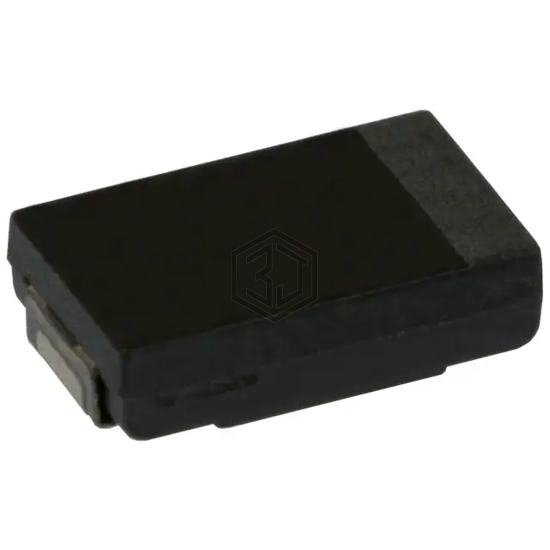

CAP ALUM POLY 220UF 20% 4V SMD
EEF-SX0G221ER is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY 220UF 20% 4V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 4 V, package / case 2917 (7343 Metric).
In Stock: 65,185
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 4 V |
| ESR (Equivalent Series Resistance) | 9mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 6.3 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
| Surface Mount Land Size | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | 2917 (7343 Metric) |
Submit your RFQ for EEF-SX0G221ER and get a quote within 24 hours.
