Panasonic Electronic Components
CAP ALUM POLY 100UF 20% 4V SMD

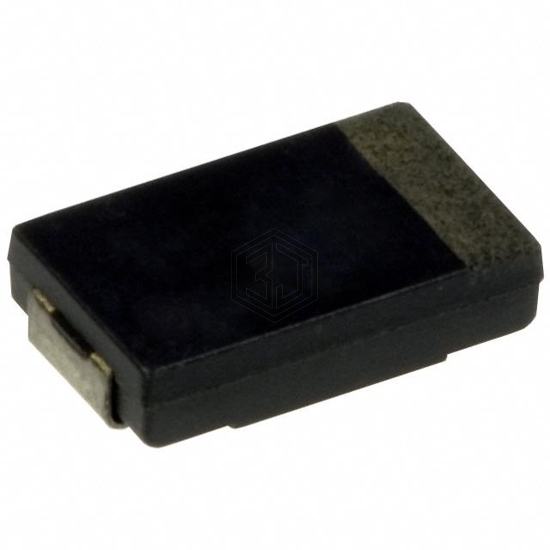

EEF-LL0G101R is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY 100UF 20% 4V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 4 V, package / case 2917 (7343 Metric).
In Stock: 8,796
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Polymer |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 4 V |
| ESR (Equivalent Series Resistance) | 18mOhm |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Height - Seated (Max) | 0.075" (1.90mm) |
| Surface Mount Land Size | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | 2917 (7343 Metric) |
EEF-LL0G101R is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RVA0J101MNG | Nichicon | CAP ALUM POLY 100UF 20% 6.3V SMD | 71% | View |
| EEF-CD0E101XE | Panasonic Electronic Components | CAP ALUM POLY 100UF 20% 2.5V SMD | 70% | View |
| 2.5SZE100M1.4X7.3 | Rubycon | CAP ALUM POLY 100UF 20% 2.5V SMD | 70% | View |
| 2.5SXB100M1.9X7.3 | Rubycon | CAP ALUM POLY 100UF 20% 2.5V SMD | 70% | View |
| EEF-CD0E101CR | Panasonic Electronic Components | CAP ALUM POLY 100UF 20% 2.5V SMD | 70% | View |
| EEF-CD0D101XR | Panasonic Electronic Components | CAP ALUM POLY 100UF 20% 2V SMD | 56% | View |
