Panasonic Electronic Components

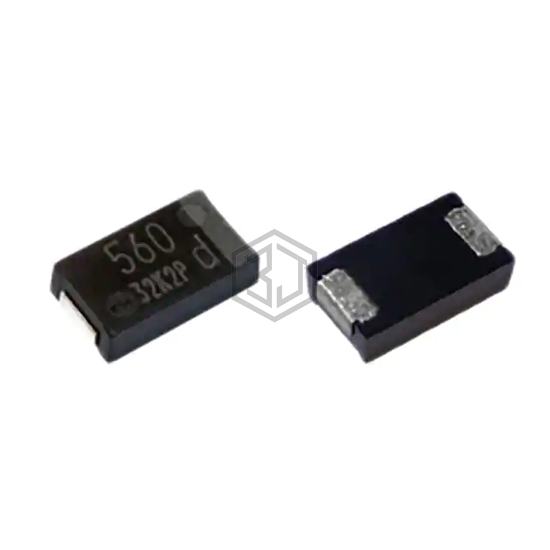

CAP ALUM POLY 47UF 20% 20V SMD
EEF-HX1D470R is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY 47UF 20% 20V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 20 V, package / case 2917 (7343 Metric).
In Stock: 6,027
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Polymer |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 20 V |
| ESR (Equivalent Series Resistance) | 40mOhm |
| Lifetime @ Temp. | 1000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 3.2 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Surface Mount |
| Package / Case | 2917 (7343 Metric) |
EEF-HX1D470R is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEF-HX1D560R | Panasonic Electronic Components | CAP ALUM POLY 56UF 20% 20V SMD | 91% | View |
| EEF-HX1C470R | Panasonic Electronic Components | CAP ALUM POLY 47UF 20% 16V SMD | 91% | View |
| A700V476M006ATE025 | KEMET | CAP ALUM POLY 47UF 20% 6.3V SMD | 70% | View |
| A700V476M006ATE028 | KEMET | CAP ALUM POLY 47UF 20% 6.3V SMD | 70% | View |
| A700V476M006ATE018 | KEMET | CAP ALUM POLY 47UF 20% 6.3V SMD | 65% | View |
| A700V566M006ATE028 | KEMET | CAP ALUM POLY 56UF 20% 6.3V SMD | 61% | View |
Submit your RFQ for EEF-HX1D470R and get a quote within 24 hours.
