Panasonic Electronic Components

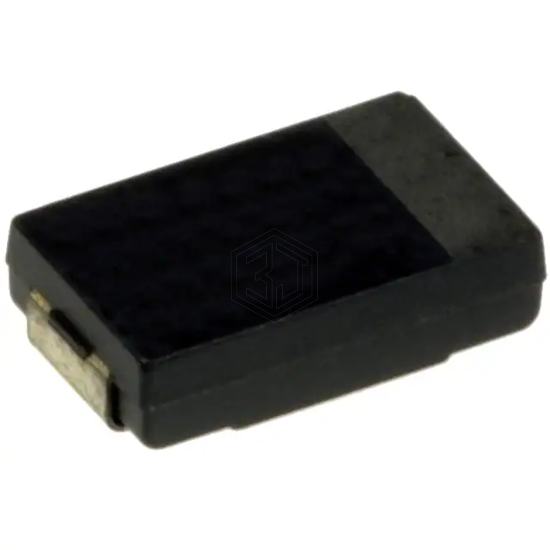

CAP ALUM POLY 15UF 20% 25V SMD
EEF-CX1E150R is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY 15UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case 2917 (7343 Metric).
In Stock: 1,650
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Polymer |
| Capacitance | 15 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 40mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 3.2 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Height - Seated (Max) | 0.075" (1.90mm) |
| Surface Mount Land Size | - |
| Mounting Type | Surface Mount |
| Package / Case | 2917 (7343 Metric) |
EEF-CX1E150R is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEF-HX1E150R | Panasonic Electronic Components | CAP ALUM POLY 15UF 20% 25V SMD | 100% | View |
| EEF-CS1E150R | Panasonic Electronic Components | CAP ALUM POLY 15UF 20% 25V SMD | 100% | View |
| RUA1E150MLG | Nichicon | CAP ALUM POLY 15UF 20% 25V SMD | 100% | View |
| RVB1E150MNG | Nichicon | CAP ALUM POLY 15UF 20% 25V SMD | 100% | View |
| RVA1E150MNG | Nichicon | CAP ALUM POLY 15UF 20% 25V SMD | 100% | View |
| A700V156M025ATE040 | KEMET | CAP ALUM POLYMR 15UF 20% 25V SMD | 93% | View |
Submit your RFQ for EEF-CX1E150R and get a quote within 24 hours.
