Panasonic Electronic Components
CAP ALUM 510UF 20% 80V SMD

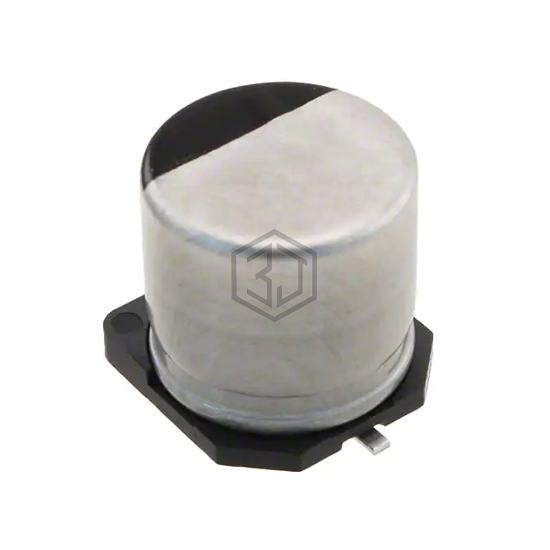

EEE-TP1K511M is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 510UF 20% 80V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 80 V, package / case Radial, Can - SMD.
In Stock: 5,167
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 510 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 95mOhm @ 100kHz |
| Lifetime @ Temp. | 3000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, High Temperature Reflow |
| Ripple Current @ Low Frequency | 1.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 2 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Surface Mount Land Size | 0.748" L x 0.748" W (19.00mm x 19.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-TP1K511V | Panasonic Electronic Components | CAP ALUM 510UF 20% 80V SMD | 100% | View |
| EEE-TP70471V | Panasonic Electronic Components | CAP ALUM 470UF 20% 70V SMD | 90% | View |
| EEE-TP1J561V | Panasonic Electronic Components | CAP ALUM 560UF 20% 63V SMD | 87% | View |
| EEE-TP1J561M | Panasonic Electronic Components | CAP ALUM 560UF 20% 63V SMD | 87% | View |
| EEE-TP70681V | Panasonic Electronic Components | CAP ALUM 680UF 20% 70V SMD | 85% | View |
| EEE-TP70681M | Panasonic Electronic Components | CAP ALUM 680UF 20% 70V SMD | 85% | View |
Submit your RFQ for EEE-TP1K511M and get a quote within 24 hours.
