Panasonic Electronic Components
CAP ALUM 2700UF 20% 25V SMD

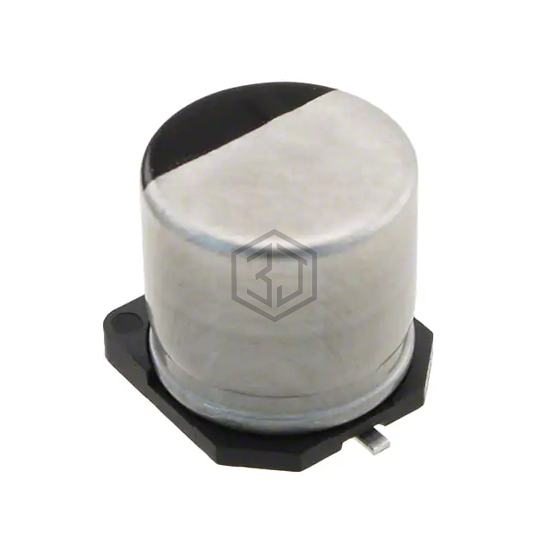

EEE-TP1E272V is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 2700UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 375
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 45mOhm @ 100kHz |
| Lifetime @ Temp. | 3000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, High Temperature Reflow |
| Ripple Current @ Low Frequency | 1.95 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.6 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Surface Mount Land Size | 0.748" L x 0.748" W (19.00mm x 19.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
