Panasonic Electronic Components
CAP ALUM 100UF 20% 25V SMD

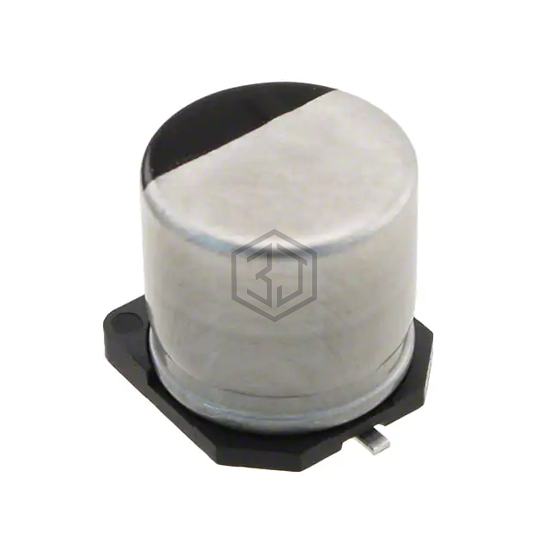

EEE-TP1E101AP is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 100UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 5,854
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, High Temperature Reflow |
| Ripple Current @ Low Frequency | 175.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 270 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.402" (10.20mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-TK1V101P | Panasonic Electronic Components | CAP ALUM 100UF 20% 35V SMD | 90% | View |
| MAL214097001E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 35V SMD | 82% | View |
| EMHJ160ADA101MHA0G | United Chemi-Con | CAP ALUM 100UF 20% 16V SMD | 75% | View |
| EEE-TQV101XAV | Panasonic Electronic Components | CAP ALUM 100UF 20% 35V SMD | 75% | View |
| EDT107M035S9MAA | KEMET | CAP ALUM 100UF 20% 35V SMD | 74% | View |
| 35TXV100M8X10.5 | Rubycon | CAP ALUM 100UF 20% 35V SMD | 74% | View |
