Panasonic Electronic Components

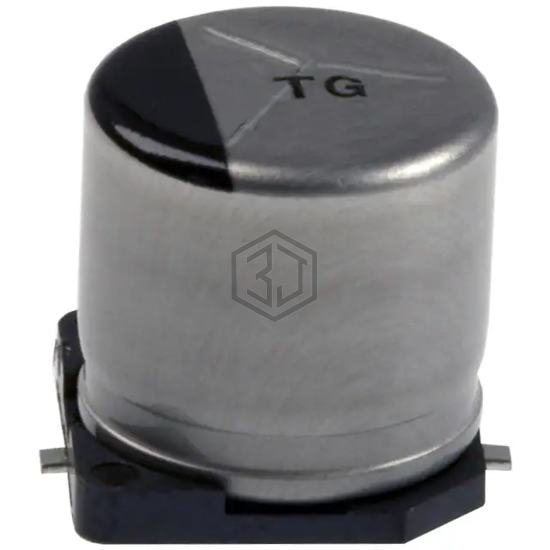

CAP ALUM 22UF 20% 80V SMD
EEE-TG1K220P is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 22UF 20% 80V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 80 V, package / case Radial, Can - SMD.
In Stock: 8,568
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 1Ohm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 58.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 90 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.402" (10.20mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCZ1K220MCS1GS | Nichicon | CAP ALUM 22UF 20% 80V SMD | 94% | View |
| EMVH800ARA220MHA0G | Chemi-Con | CAP ALUM 22UF 20% 80V SMD | 91% | View |
| EEE-TG1J220P | Panasonic Electronic Components | CAP ALUM 22UF 20% 63V SMD | 88% | View |
| EMVH101ARA220MHA0G | Chemi-Con | CAP ALUM 22UF 20% 100V SMD | 85% | View |
| EMVH800ARA220MJA0G | Chemi-Con | CAP ALUM 22UF 20% 80V SMD | 80% | View |
| MVH100VC22RMJ10TP | United Chemi-Con | CAP ALUM 22UF 20% 100V SMD | 79% | View |
