Panasonic Electronic Components
CAP ALUM 33UF 20% 50V SMD

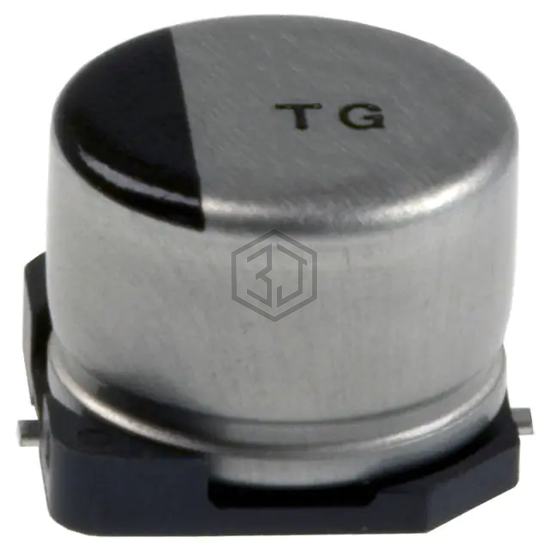

EEE-TG1H330UP is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 33UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 8,622
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 1.6Ohm @ 100kHz |
| Lifetime @ Temp. | 1000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 52 mA @ 120 Hz |
| Ripple Current @ High Frequency | 80 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.244" (6.20mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EMVH500ADA330MF80G | United Chemi-Con | CAP ALUM 33UF 20% 50V SMD | 90% | View |
| UCJ1V330MCL1GS | Nichicon | CAP ALUM 33UF 20% 35V SMD | 83% | View |
| UWH1V330MCL1GS | Nichicon | CAP ALUM 33UF 20% 35V SMD | 82% | View |
| 50THV33M6.3X8 | Rubycon | CAP ALUM 33UF 20% 50V SMD | 79% | View |
| 35TXV33M6.3X8 | Rubycon | CAP ALUM 33UF 20% 35V SMD | 71% | View |
| EMVH350ADA330MF80G | United Chemi-Con | CAP ALUM 33UF 20% 35V SMD | 65% | View |
Submit your RFQ for EEE-TG1H330UP and get a quote within 24 hours.
