Panasonic Electronic Components

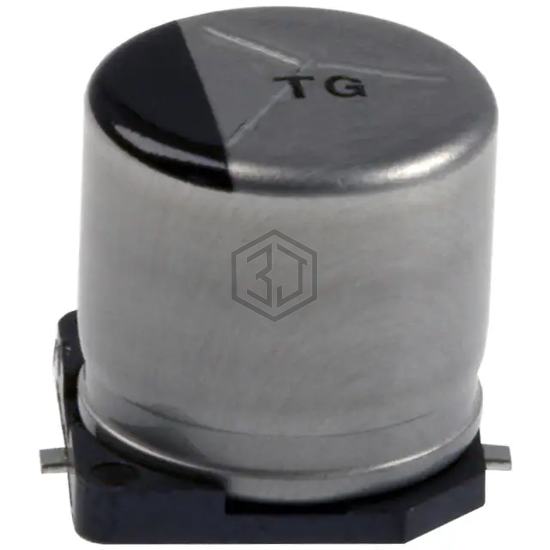

CAP ALUM 220UF 20% 16V SMD
EEE-TG1C221P is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 220UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 8,574
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 300mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 128.1 mA @ 120 Hz |
| Ripple Current @ High Frequency | 270 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.402" (10.20mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VUJ221M1CTR-1010S | SURGE | CAP ALUM 220UF 20% 16V SMD | 81% | View |
| EEE-TP1A221AP | Panasonic Electronic Components | CAP ALUM 220UF 20% 10V SMD | 78% | View |
| EDT227M025S9PAA | KEMET | CAP ALUM 220UF 20% 25V SMD | 77% | View |
| EEV-TG2A221M | Panasonic Electronic Components | CAP ALUM 220UF 20% 100V SMD | 61% | View |
| UCJ1V221MCL1GS | Nichicon | CAP ALUM 220UF 20% 35V SMD | 59% | View |
| EEE-TC1A221P | Panasonic Electronic Components | CAP ALUM 220UF 20% 10V SMD | 58% | View |
