Panasonic Electronic Components

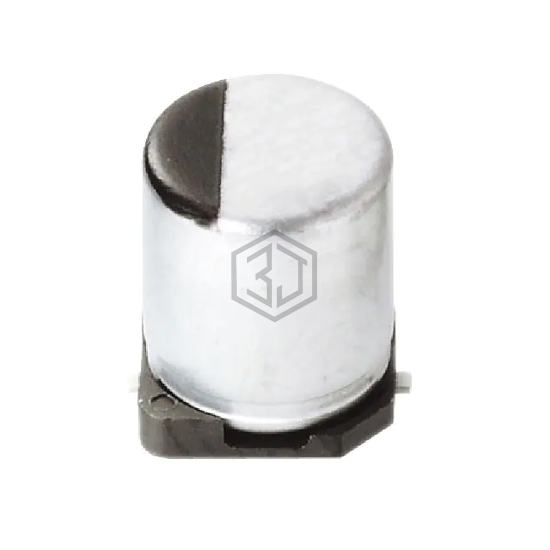

CAP ALUM 47UF 20% 35V SMD
EEE-TC1V470P is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 47UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 200mOhm @ 100kHz |
| Lifetime @ Temp. | 3000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, High Temperature Reflow |
| Ripple Current @ Low Frequency | 266.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 410 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-TC1V470XP | Panasonic Electronic Components | CAP ALUM 47UF 20% 35V SMD | 85% | View |
| 50THV47M10X10.5 | Rubycon | CAP ALUM 47UF 20% 50V SMD | 75% | View |
| MAL214699804E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 20% 63V SMD | 64% | View |
| 50THV47M8X10.5 | Rubycon | CAP ALUM 47UF 20% 50V SMD | 59% | View |
| MAL214699704E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 80V SMD | 57% | View |
| EMHL350ARA470MF61G | United Chemi-Con | CAP ALUM 47UF 20% 35V SMD | 51% | View |
