Panasonic Electronic Components
CAP ALUM 470UF 20% 25V SMD

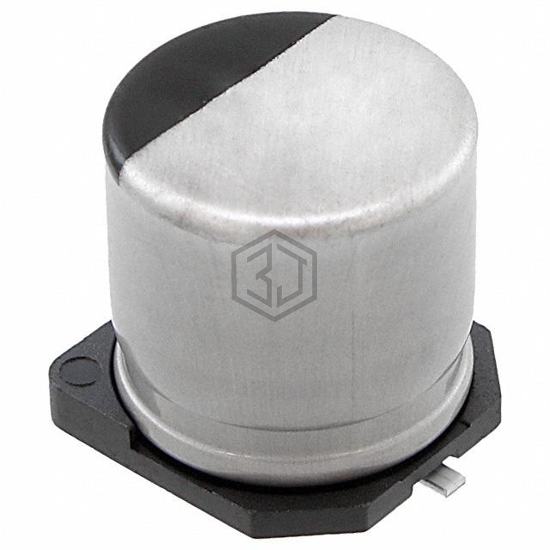

EEE-TC1E471UP is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 470UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 7,086
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 150mOhm @ 100kHz |
| Lifetime @ Temp. | 3000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, High Temperature Reflow |
| Ripple Current @ Low Frequency | 487.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 750 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MVH25VC471MK14TR | United Chemi-Con | CAP ALUM 470UF 20% 25V SMD | 100% | View |
| AEH1213471M025R | KYOCERA AVX | ALUMINUM CAP | 94% | View |
| AEH1216471M035R | KYOCERA AVX | ALUMINUM CAP | 84% | View |
| EEE-TC1A471P | Panasonic Electronic Components | CAP ALUM 470UF 20% 10V SMD | 79% | View |
| EEE-TP1C471AP | Panasonic Electronic Components | CAP ALUM 470UF 20% 16V SMD | 67% | View |
| EEE-TK1K471AM | Panasonic Electronic Components | CAP ALUM 470UF 20% 80V SMD | 52% | View |
