Panasonic Electronic Components
CAP ALUM 680UF 20% 16V SMD

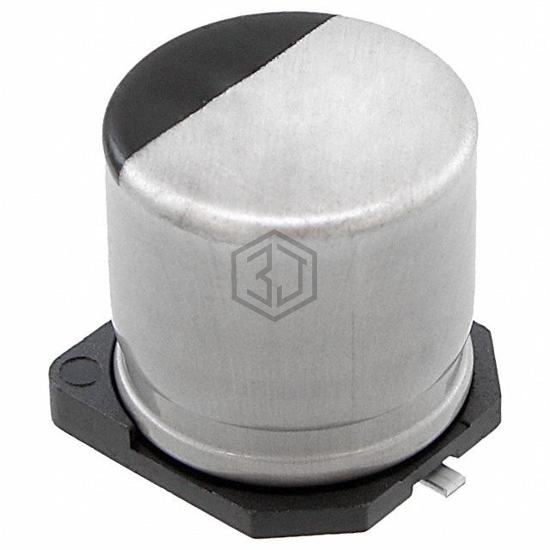

EEE-TC1C681UP is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 680UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 2,014
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 150mOhm @ 100kHz |
| Lifetime @ Temp. | 3000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, High Temperature Reflow |
| Ripple Current @ Low Frequency | 487.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 750 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MVH16VC681MK14TR | United Chemi-Con | CAP ALUM 680UF 20% 16V SMD | 100% | View |
| UUE1C681MNS1ZD | Nichicon | CAP ALUM 680UF 20% 16V SMD | 85% | View |
| MAL214097411E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 10V SMD | 78% | View |
| EMVH250GDA681MLH0S | United Chemi-Con | CAP ALUM 680UF 20% 25V SMD | 75% | View |
| EMVH250GRA681MLH0S | Chemi-Con | CAP ALUM 680UF 20% 25V SMD | 75% | View |
| MAL216099004E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 35V SMD | 68% | View |
Submit your RFQ for EEE-TC1C681UP and get a quote within 24 hours.
