Panasonic Electronic Components
CAP ALUM 100UF 20% 16V SMD

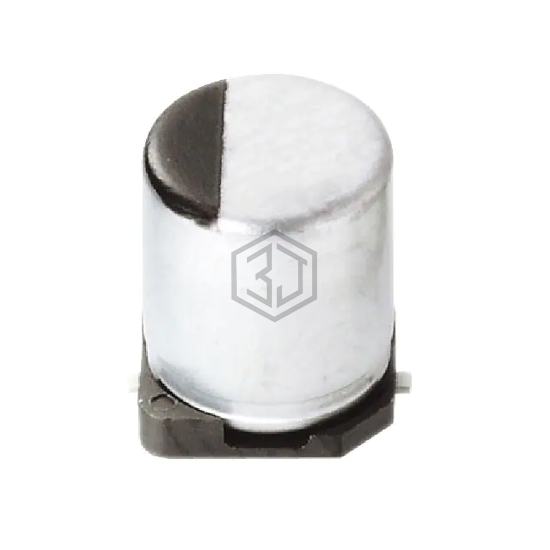

EEE-TC1C101XP is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 100UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 8,201
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 450mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, High Temperature Reflow |
| Ripple Current @ Low Frequency | 195 mA @ 120 Hz |
| Ripple Current @ High Frequency | 300 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-TPC101XAP | Panasonic Electronic Components | CAP ALUM 100UF 20% 16V SMD | 80% | View |
| 25TXV100M8X10.5 | Rubycon | CAP ALUM 100UF 20% 25V SMD | 80% | View |
| EMHL250ARA101MF80G | United Chemi-Con | CAP ALUM 100UF 20% 25V SMD | 78% | View |
| EMHJ250ADA101MHA0G | United Chemi-Con | CAP ALUM 100UF 20% 25V SMD | 75% | View |
| MAL216099702E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 80V SMD | 71% | View |
| UCJ1V101MCL1GS | Nichicon | CAP ALUM 100UF 20% 35V SMD | 71% | View |
Submit your RFQ for EEE-TC1C101XP and get a quote within 24 hours.
