Panasonic Electronic Components
CAP ALUM 560UF 20% 10V SMD

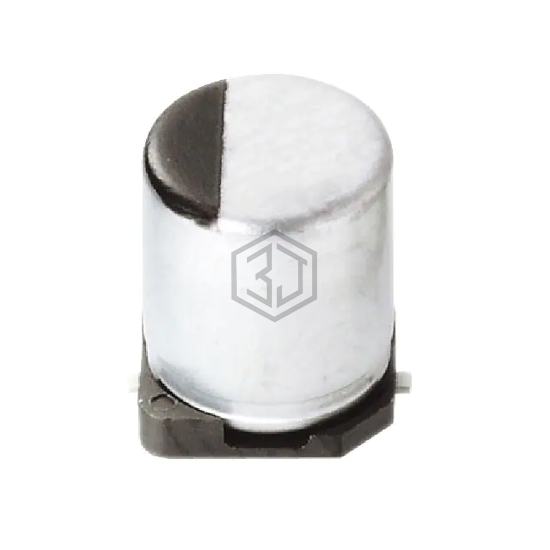

EEE-TC1A561UP is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 560UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 3,041
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 200mOhm @ 100kHz |
| Lifetime @ Temp. | 3000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive, High Temperature Reflow |
| Ripple Current @ Low Frequency | 266.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 410 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-TC1A561UV | Panasonic Electronic Components | CAP ALUM 560UF 20% 10V SMD | 100% | View |
| UCH1E561MCS1GS | Nichicon | CAP ALUM 560UF 20% 25V SMD | 73% | View |
| UCN1V561MCL1GS | Nichicon | 35V 560F CHIP 10MM OR LESS CHIP | 73% | View |
| UCH1E561MCL1GS | Nichicon | CAP ALUM 25V POLAR | 73% | View |
| EDT687M010S9PAA | KEMET | CAP ALUM 680UF 20% 10V SMD | 72% | View |
| MAL214099411E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 10V SMD | 70% | View |
Submit your RFQ for EEE-TC1A561UP and get a quote within 24 hours.
