Panasonic Electronic Components

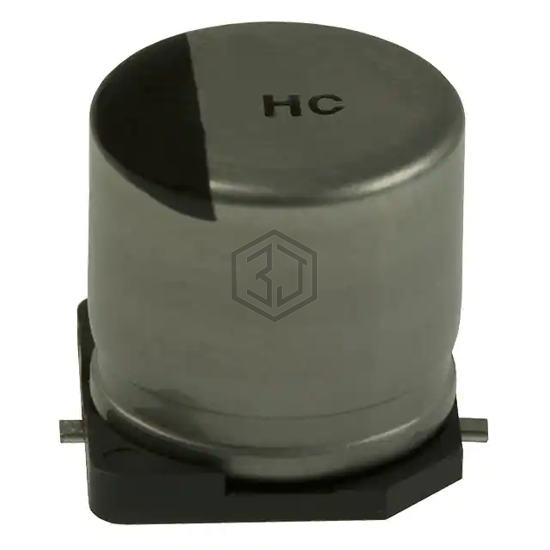

CAP ALUM 470UF 20% 16V SMD
EEE-HC1C471P is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 470UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 3,654
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 340 mA @ 120 Hz |
| Ripple Current @ High Frequency | 578 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.402" (10.20mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 16SGV470M8X10.5 | Rubycon | CAP ALUM 470UF 20% 16V SMD | 98% | View |
| RVJ-16V471MH10U-R | Elna America | CAP 470UF 16V SMD | 90% | View |
| UCL1C471MNL1GS | Nichicon | CAP ALUM 470UF 20% 16V SMD | 85% | View |
| EDH477M025A9PAA | KEMET | CAP ALUM 470UF 20% 25V SMD | 79% | View |
| EEE-FK1A471GV | Panasonic Electronic Components | CAP ALUM 470UF 20% 10V SMD | 78% | View |
| 10SGV470M10X10.5 | Rubycon | CAP ALUM 470UF 20% 10V SMD | 72% | View |
Submit your RFQ for EEE-HC1C471P and get a quote within 24 hours.
