Panasonic Electronic Components

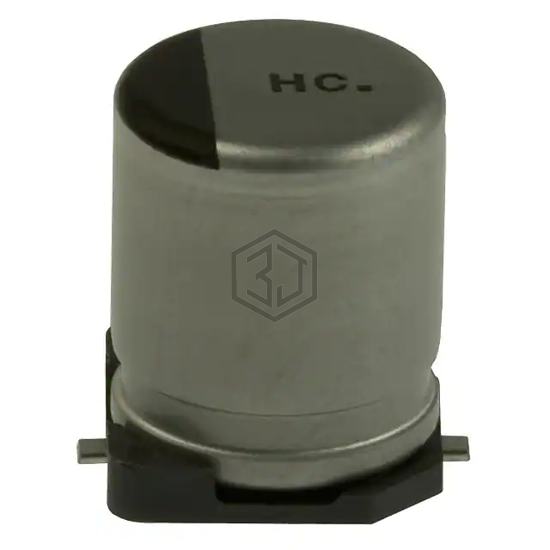

CAP ALUM 220UF 20% 10V SMD
EEE-HC1A221P is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 220UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 1,988
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 160 mA @ 120 Hz |
| Ripple Current @ High Frequency | 272 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.402" (10.20mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 865060345007 | Würth Elektronik | CAP ALUM 220UF 20% 16V SMD | 82% | View |
| EDH227M010A9HAA | KEMET | CAP ALUM 220UF 20% 10V SMD | 79% | View |
| EDT227M035S9PAA | KEMET | CAP ALUM 220UF 20% 35V SMD | 75% | View |
| 227SVH016MEL | Cornell Dubilier / Illinois Capacitor | CAP ALUM 220UF 20% 16V SMD | 63% | View |
| MAL214097601E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 25V SMD | 63% | View |
| EEE-HBJ221UAP | Panasonic Electronic Components | CAP ALUM 220UF 20% 6.3V SMD | 53% | View |
Submit your RFQ for EEE-HC1A221P and get a quote within 24 hours.
