Panasonic Electronic Components

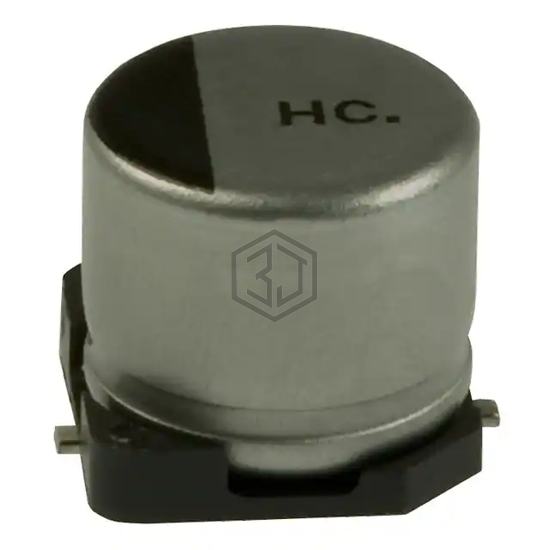

CAP ALUM 220UF 20% 6.3V SMD
EEE-HC0J221XP is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 220UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 1,800
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 101 mA @ 120 Hz |
| Ripple Current @ High Frequency | 171.7 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.303" (7.70mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AEF0608221M006R | KYOCERA AVX | CAP ALUM 6.3V POLAR | 96% | View |
| UT227M010HEJTA | Aillen | CAP ALUM 220UF 20% 10V SMD | 83% | View |
| EEE-HAC221XAP | Panasonic Electronic Components | CAP ALUM 220UF 20% 16V SMD | 77% | View |
| MAL214097403E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 10V SMD | 74% | View |
| CTB0J221MCB6358 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 74% | View |
| EEE-FN1C221XP | Panasonic Electronic Components | CAP ALUM 220UF 20% 16V SMD | 53% | View |
Submit your RFQ for EEE-HC0J221XP and get a quote within 24 hours.
