Panasonic Electronic Components

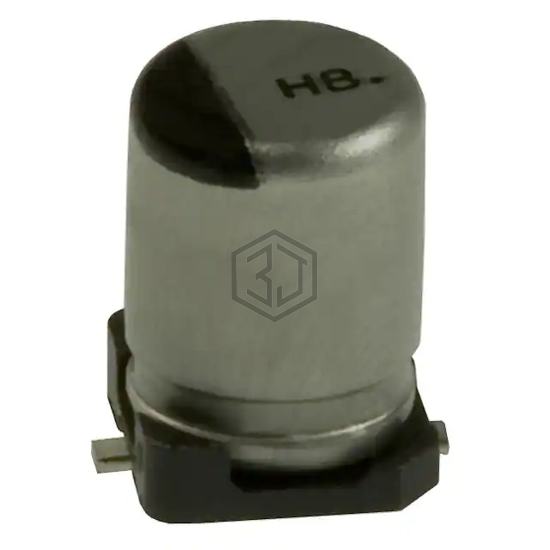

CAP ALUM 47UF 20% 25V SMD
EEE-HB1E470AP is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 47UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 9,507
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 91 mA @ 120 Hz |
| Ripple Current @ High Frequency | 154.7 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.244" (6.20mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEV476M016A9DAA | KEMET | CAP ALUM 47UF 20% 16V SMD | 81% | View |
| 476SVL025MEL | Cornell Dubilier / Illinois Capacitor | CAP ALUM 47UF 20% 25V SMD | 81% | View |
| UUL1H470MNL1GS | Nichicon | CAP ALUM 47UF 20% 50V SMD | 76% | View |
| EMZA500ADA470MF80G | United Chemi-Con | CAP ALUM 47UF 20% 50V SMD | 70% | View |
| EDH476M016A9GAA | KEMET | CAP ALUM 47UF 20% 16V SMD | 67% | View |
| EDH476M010A9GAA | KEMET | CAP ALUM 47UF 20% 10V SMD | 59% | View |
