Panasonic Electronic Components

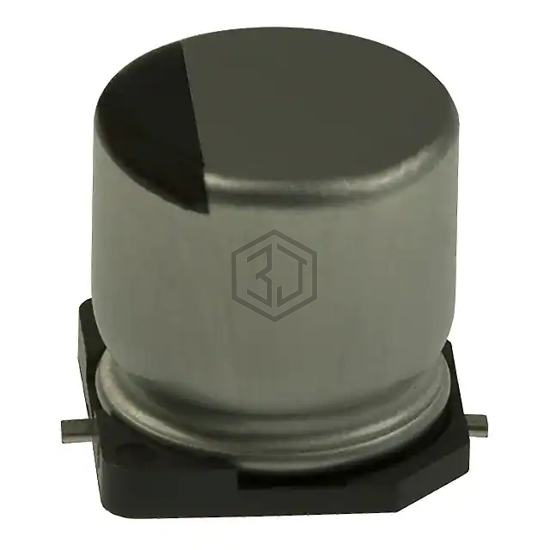

CAP ALUM 47UF 20% 50V SMD
EEE-HAH470XAP is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 47UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 4,207
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 63 mA @ 120 Hz |
| Ripple Current @ High Frequency | 107.1 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.303" (7.70mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEE-HAH470XAP is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEV-HA1J470P | Panasonic Electronic Components | CAP ALUM 47UF 20% 63V SMD | 83% | View |
| CED1H470MCB6377F2 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 78% | View |
| UUL1E470MCL1GS | Nichicon | CAP ALUM 47UF 20% 25V SMD | 76% | View |
| EMLA160ARA470MF61G | Chemi-Con | CAP ALUM 47UF 20% 16V SMD | 70% | View |
| EMVL250ADA470MF80G | United Chemi-Con | CAP ALUM 47UF 20% 25V SMD | 68% | View |
| EMVY6R3ADA470ME55G | United Chemi-Con | CAP ALUM 47UF 20% 6.3V SMD | 64% | View |
