Panasonic Electronic Components

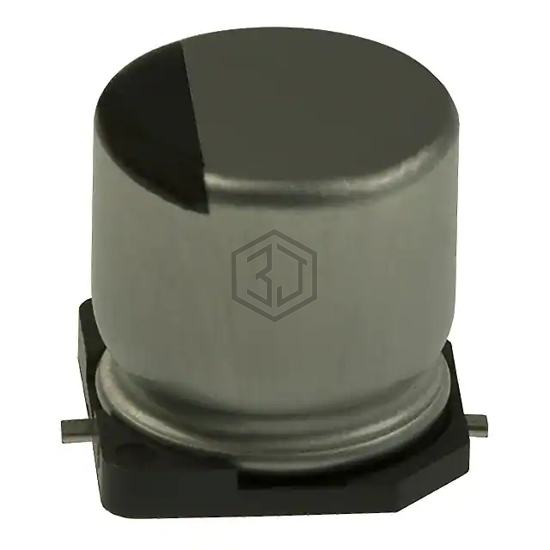

CAP ALUM 220UF 20% 25V SMD
EEE-HAE221UAP is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 220UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 3,047
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 160 mA @ 120 Hz |
| Ripple Current @ High Frequency | 272 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.402" (10.20mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EMVH250ADA221MHA0G | United Chemi-Con | CAP ALUM 220UF 20% 25V SMD | 89% | View |
| EEE-HBV221UAP | Panasonic Electronic Components | CAP ALUM 220UF 20% 35V SMD | 84% | View |
| UUD1V221MNQ1GS | Nichicon | CAP ALUM 220UF 20% 35V SMD | 78% | View |
| EEE-FKA221XAL | Panasonic Electronic Components | CAP ALUM 220UF 20% 10V SMD | 75% | View |
| 25SGV220M10X10.5 | Rubycon | CAP ALUM 220UF 20% 25V SMD | 74% | View |
| EMK1CM221E83D00R | AiSHi Capacitors | ALUMINUM E-CAP SMT | 71% | View |
