Panasonic Electronic Components

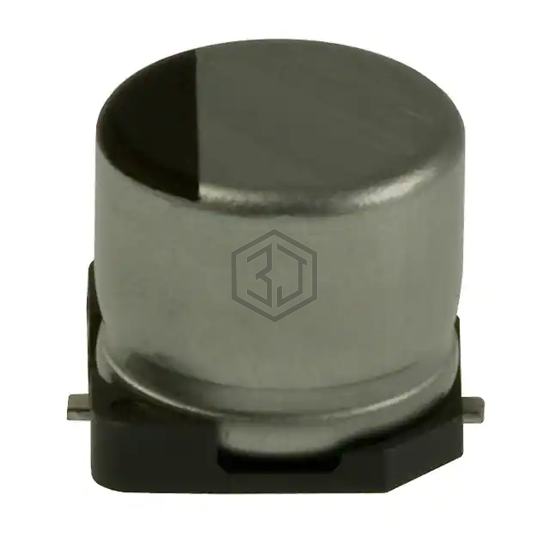

CAP ALUM 47UF 20% 16V SMD
EEE-HA1C470AP is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 47UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 1,096
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 70 mA @ 120 Hz |
| Ripple Current @ High Frequency | 119 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
EEE-HA1C470AP is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AHA476M50X16T-F | Cornell Dubilier Knowles | CAP ALUM 47UF 20% 50V SMD | 74% | View |
| EEE-HD1V470AP | Panasonic Electronic Components | CAP ALUM 47UF 20% 35V SMD | 73% | View |
| 476AXZ6R3M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 47UF 20% 6.3V SMD | 72% | View |
| EEE-HDV470XAP | Panasonic Electronic Components | CAP ALUM 47UF 20% 35V SMD | 69% | View |
| EMLA250ADA470MF80G | United Chemi-Con | CAP ALUM 47UF 20% 25V SMD | 64% | View |
| EMLA350ADA470MF80G | United Chemi-Con | CAP ALUM 47UF 20% 35V SMD | 57% | View |
Submit your RFQ for EEE-HA1C470AP and get a quote within 24 hours.
