Panasonic Electronic Components

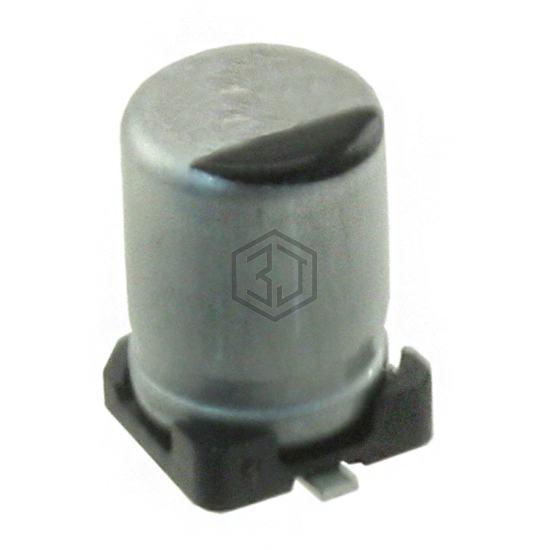

CAP ALUM 22UF 20% 35V SMD
EEE-FT1V220AR is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 22UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 3,506
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 850mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 104 mA @ 120 Hz |
| Ripple Current @ High Frequency | 160 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EXV226M016A9DAA | KEMET | CAP ALUM 22UF 20% 16V SMD | 77% | View |
| EMVY250ADA220MF55G | United Chemi-Con | CAP ALUM 22UF 20% 25V SMD | 72% | View |
| RVJ-100V220MH10U-R | Elna America | CAP 22UF 100V SMD | 68% | View |
| RSVVS220M1GDC3001U | Elna America | CAP ALUM 22UF 20% 35V SMD | 63% | View |
| UWT1V220MCL1GB | Nichicon | CAP ALUM 22UF 20% 35V SMD | 56% | View |
| AFK226M16B12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 16V SMD | 55% | View |
