Panasonic Electronic Components
CAP ALUM 220UF 20% 50V SMD

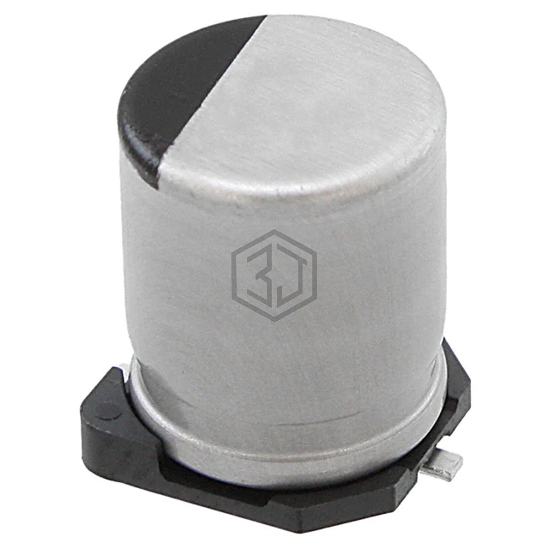

EEE-FT1H221GP is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 220UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 8,765
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 180mOhm @ 100kHz |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 435.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 670 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 865080657018 | Würth Elektronik | CAP ALUM 220UF 20% 50V SMD | 99% | View |
| UT227M063HPNTA | Aillen | CAP. ALUM 220UF 63V 20% SMD | 88% | View |
| MAL214699512E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 16V SMD | 77% | View |
| EEE-FK1E221AL | Panasonic Electronic Components | CAP ALUM 220UF 20% 25V SMD | 74% | View |
| 25TZV220M8X10.5 | Rubycon | CAP ALUM 220UF 20% 25V SMD | 72% | View |
| MAL214699908E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 100V SMD | 72% | View |
Submit your RFQ for EEE-FT1H221GP and get a quote within 24 hours.
