Panasonic Electronic Components

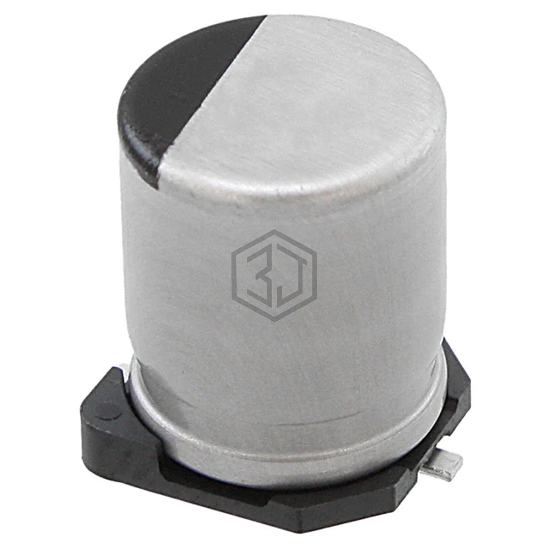

CAP ALUM 470UF 20% 25V SMD
EEE-FT1E471GP is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 470UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 7,315
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 80mOhm @ 100kHz |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 552.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 850 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VUJ471M1ETR-1313S | SURGE | CAP ALUM 470UF 20% 25V SMD | 94% | View |
| EEE-FN1E471UP | Panasonic Electronic Components | CAP ALUM 470UF 20% 25V SMD | 83% | View |
| EMVY350ARA471MKE0S | United Chemi-Con | CAP ALUM 470UF 20% 35V SMD | 82% | View |
| EXV477M010S9PAA | KEMET | CAP ALUM 470UF 20% 10V SMD | 77% | View |
| EMVY500GDA471MLH0S | United Chemi-Con | CAP ALUM 470UF 20% 50V SMD | 73% | View |
| UCM1H471MNJ1MS | Nichicon | CAP ALUM 470UF 20% 50V SMD | 63% | View |
Submit your RFQ for EEE-FT1E471GP and get a quote within 24 hours.
