Panasonic Electronic Components
CAP ALUM 150UF 20% 16V SMD

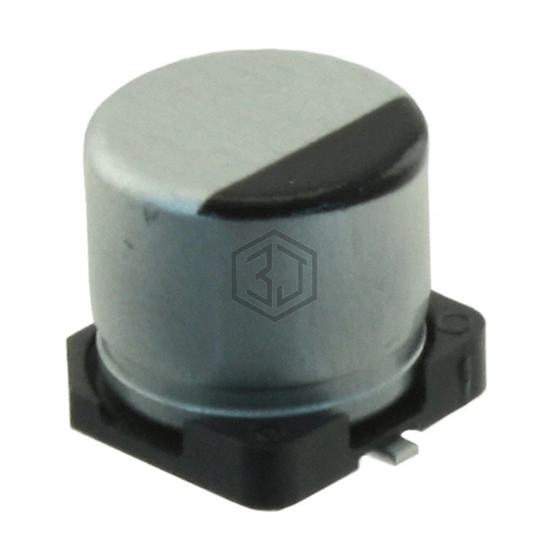

EEE-FT1C151AP is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 150UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 6,992
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 260mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 195 mA @ 120 Hz |
| Ripple Current @ High Frequency | 300 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UWD1C151MCL1GS | Nichicon | CAP ALUM 150UF 20% 16V SMD | 90% | View |
| EMZJ160ADA151MF80G | United Chemi-Con | CAP ALUM 150UF 20% 16V SMD | 78% | View |
| EEE-FN1A151L | Panasonic Electronic Components | CAP ALUM 150UF 20% 10V SMD | 75% | View |
| 10TZV150M6.3X6.1 | Rubycon | CAP ALUM 150UF 20% 10V SMD | 70% | View |
| UWT1E151MNL1GS | Nichicon | CAP ALUM 150UF 20% 25V SMD | 70% | View |
| UWD0J151MCL1GS | Nichicon | CAP ALUM 150UF 20% 6.3V SMD | 60% | View |
Submit your RFQ for EEE-FT1C151AP and get a quote within 24 hours.
